TOTAL STATION RECON RTS-102 Reflectorless 1.2km
Harga
Rp3.500,-
Tersedia

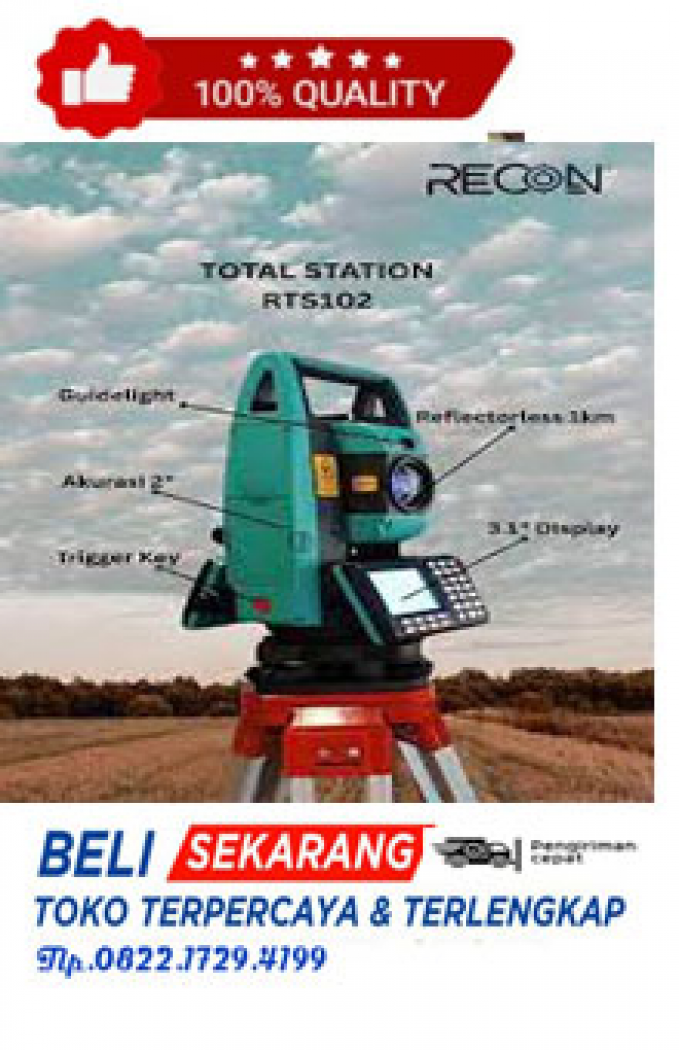

TOTAL STATION RECON RTS-102
Total Station RECON RTS-102
Dilengkapi Guideline untuk membantu ketika pengambilan reflectorless jarak hingga 1.2 km. Data transfer sudah bisa dengan bluetooth di hp
Stable performance with accurate long-range distance measurement. Large and easy-to-read display and practical onboard software. RTS102 offers a durable and versatile solution to your survey and construction tasks.
Telescopic
Length : 154mm
Diameter : Telescopic: 45mm; EMD: 50mm
Magnification : 30x
Image : Erect
Field of View : 1°30’
Resolving Power : 3”
Minimum Focus : 1.5m
DISTANCE
Single Prism Range : 5,000m
Accuracy : ±(2mm+2mm*D)m.s.e
Non-prism Range : 1,500m
Accuracy : ±(3mm+2mm*D)m.s.e
Measuring Time : Fine: 0.3s; Normal: 0.2s
Meteorologic Correction : Auto Sensor
Prism Constant : Manual
ANGLE
Accuracy : 2"
Method : Absolute Encoding
Detecting System : H: dual; V: dual
Minimum Reading :1'/5'/10'
Diameter of Circle : 79mm
Vertical Angle 0° : enith: 0°; Horzontal: 0°
Unit : 360°/400gon/6400mil
DISPLAY
Display Unit : 240*160 with backlight, 8 lines
No. of Displays : 2
Keyboard : Alphanumeric
GUIDE LIGHT
Type : Red+yellow flashing LED
Working Range : 150m
PLUMMET - LASER
Type : Class II red Laser
Accuracy : <0.4mm 1="" 5m="" height="" br="">Spot Diameter : <1.5mm 1="" 5m="" height="" br="">- OPTICAL : *optional
Image : Erect
Magnification : 3x
Focusing Range : 0.3m - ∞
Field of View : 5°
TILT CORRECTION
Tilt Sensor : Dual Axis
Method : Liquid electric
Range : 4'
Resolution : 1"
LEVEL
Plate Level : 30”/2mm
Circular Level : 8'/2mm
DATA INTERFACE
Internal Memory : > 10,000 points
Data Interface : USB2.0
Wireless : Bluetooth 2.1, WT12
GENERAL
Quick-meas Button : YEs
Weight : 5.4kg
Dimension : 353 (H) * 206 (L) * 200 (W) mm
Operating Temperature : -20°C to 50°C
Battery : Li-on battery, 7.4V, 3000mAh
Water & Dust Proof : IP55
Working Duration : 16h
Informasi Produk & Penawaran Harga Terbaik
Hubungi :
☎️ 0822.1729.4199
🌐 www.margasetiateknik.com
Total Station RECON RTS-102
Dilengkapi Guideline untuk membantu ketika pengambilan reflectorless jarak hingga 1.2 km. Data transfer sudah bisa dengan bluetooth di hp
Stable performance with accurate long-range distance measurement. Large and easy-to-read display and practical onboard software. RTS102 offers a durable and versatile solution to your survey and construction tasks.
SPECIFICATIONS TOTAL STATION RECON RTS-102
Telescopic
Length : 154mm
Diameter : Telescopic: 45mm; EMD: 50mm
Magnification : 30x
Image : Erect
Field of View : 1°30’
Resolving Power : 3”
Minimum Focus : 1.5m
DISTANCE
Single Prism Range : 5,000m
Accuracy : ±(2mm+2mm*D)m.s.e
Non-prism Range : 1,500m
Accuracy : ±(3mm+2mm*D)m.s.e
Measuring Time : Fine: 0.3s; Normal: 0.2s
Meteorologic Correction : Auto Sensor
Prism Constant : Manual
ANGLE
Accuracy : 2"
Method : Absolute Encoding
Detecting System : H: dual; V: dual
Minimum Reading :1'/5'/10'
Diameter of Circle : 79mm
Vertical Angle 0° : enith: 0°; Horzontal: 0°
Unit : 360°/400gon/6400mil
DISPLAY
Display Unit : 240*160 with backlight, 8 lines
No. of Displays : 2
Keyboard : Alphanumeric
GUIDE LIGHT
Type : Red+yellow flashing LED
Working Range : 150m
PLUMMET - LASER
Type : Class II red Laser
Accuracy : <0.4mm 1="" 5m="" height="" br="">Spot Diameter : <1.5mm 1="" 5m="" height="" br="">- OPTICAL : *optional
Image : Erect
Magnification : 3x
Focusing Range : 0.3m - ∞
Field of View : 5°
TILT CORRECTION
Tilt Sensor : Dual Axis
Method : Liquid electric
Range : 4'
Resolution : 1"
LEVEL
Plate Level : 30”/2mm
Circular Level : 8'/2mm
DATA INTERFACE
Internal Memory : > 10,000 points
Data Interface : USB2.0
Wireless : Bluetooth 2.1, WT12
GENERAL
Quick-meas Button : YEs
Weight : 5.4kg
Dimension : 353 (H) * 206 (L) * 200 (W) mm
Operating Temperature : -20°C to 50°C
Battery : Li-on battery, 7.4V, 3000mAh
Water & Dust Proof : IP55
Working Duration : 16h
Informasi Produk & Penawaran Harga Terbaik
Hubungi :
☎️ 0822.1729.4199
🌐 www.margasetiateknik.com
